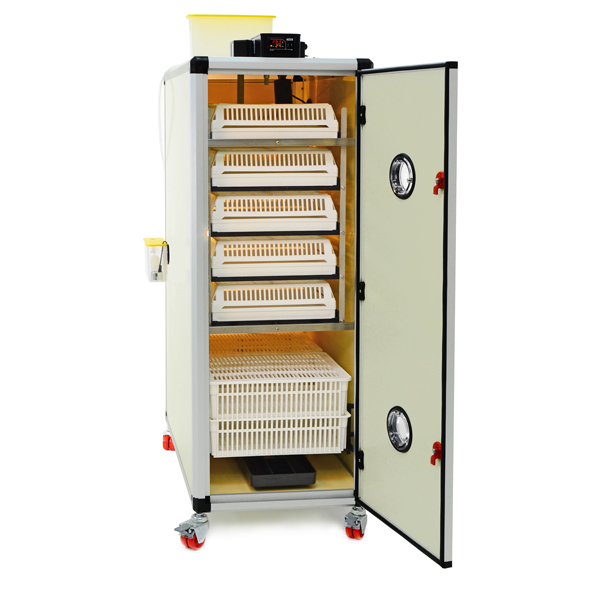

Hb500 C – Combined Egg Incubator Prodi
Hb500 C Combined Incubator is used for partial sets with capacity of 350 setting and 140 hatching. It provides ideal incubation environment for embryo development and hatching with fully automatic heating / turning / humidity systems. High / low temperature and humidity alarm feature allows users to use more secure. The eggs that are loaded to the setters section in partial sets are transferred to the internal hatching section at the bottom for the last 2 days of incubation. It is also possible to use as a hatcher with the external Flexy35 hatching cover. It offers a all set/all hatch use chance.
Combined Egg Incubator Prodi – Hb500 C
| Egg Capacity: |
Setters 10 x Flexy35Y |
Hatchers 4 x CS35 |
Total |
| Hen | 350 | 140 | 490 |
| Turkey-Duck | 240 | 96 | 336 |
| Quail | 990 | 396 | 1386 |
| Partridge | 560 | 224 | 784 |
| Pheasant | 480 | 192 | 672 |
| Goose-Peacock | 150 | 60 | 210 |
| Usage | Combined use – partial loading External offers Flexy 35 egg turning trays can be turned into a hatching boxy by using Flexy hatching covers All set/all hatch use
|
| Cabin |
Double walled, high isolation, sandwich panel
Double door design, 2nd door for back cleaning and service
Eloxal aluminium cabin profiles
|
| Temperature | Automatic PID temperature controller,
Digital temperature display |
| Humidity |
HumisonicTM full automatic humidity system,
digital humidity display,
humidity tray with rack
Water tank |
| Ventilation | AirrouteTM Plus ventilation technologie, Energy savings of up to 90% in ventilation with only 5 W electricity consumption Long lasting use with IP55 dust and humidity protection
Air cycle with working voltage between 90-265 V |
| Setters |
TurnXTM automatic egg turning system,
Stainless Chrome-Steel SS304 internal mechanism
10 pieces Flexy35Y – adjustable incubation tray |
| Hatchers | 4 pieces CS35 hatchery basket Can be also used as hatcher with external offered Flexy35 hatching cover. All set/all hatch
|
|
Alarm
|
High – low temperature alarm,
high low humidity alarm, sensor alarm |
|
Security
|
Insurance Protection
Sensorless operating mode |
| Energy consumption | 230V / 50Hz typical: 135 W maximum: 420 W |
| Together with product | Incubator user manual, spare fuse |
